Constructing a Simple Solar Panel for Educational Purposes

This document provides a comprehensive guide for educators and students interested in constructing a basic solar panel suitable for school science projects. The process described emphasizes simplicity and safety, focusing on readily available materials and techniques adaptable to various educational settings. While the resulting panel will not possess the efficiency of commercially produced units, it offers a valuable hands-on learning experience demonstrating the fundamental principles of photovoltaic energy conversion.

Materials Acquisition and Preparation

The success of this project hinges on the careful selection and preparation of materials. Improperly handled materials can compromise both the efficiency and safety of the completed solar panel. Detailed attention to each step is paramount.

Essential Components:

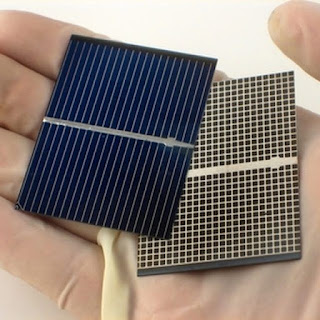

• Solar Cells: These are the heart of the solar panel, converting sunlight into electricity. For educational purposes, readily available, low-cost solar cells are suitable. These can often be purchased online or at electronics supply stores. The number of cells used will determine the panel's overall power output. It is recommended to start with a small number (e.g., 3-5 cells) for easier handling and understanding.
• Substrate: A sturdy base is required to support the solar cells and provide structural integrity to the panel. A piece of stiff cardboard, a thin sheet of plywood, or even a sturdy plastic sheet can serve this purpose. The substrate should be slightly larger than the array of solar cells to provide a margin for securing the components.
• Connecting Wires: Fine gauge copper wires, preferably insulated, are needed to interconnect the solar cells and connect the panel to an external load (e.g., a small LED bulb or motor). Soldering is usually required to create robust connections, so ensure appropriate tools and safety precautions are in place.
• Soldering Iron and Solder: A low-wattage soldering iron and rosin-core solder are essential for creating reliable electrical connections between the solar cells and connecting wires. Always prioritize safety when working with soldering irons and ensure adult supervision for younger students.
• Adhesive: A strong adhesive, such as hot glue or epoxy, is needed to securely fix the solar cells to the substrate. Ensure the adhesive is compatible with both the solar cells and the substrate material. Avoid adhesives that could damage the solar cells or their electrical contacts.
• Encapsulation Material (Optional): For enhanced durability and protection against the elements, an encapsulation material such as clear silicone sealant or resin can be applied over the solar cells after they are affixed to the substrate. This step is optional but adds considerable longevity to the panel.
• Load (Optional): A small load, such as an LED light or a low-voltage DC motor, will allow students to observe the generated electricity. This provides a direct demonstration of the panel's functionality.

Preparation Steps:

• Clean the Substrate: Before affixing the solar cells, ensure the substrate is clean and free of any debris that could interfere with adhesion. Lightly sand the surface if necessary to improve adhesion.
• Prepare the Solar Cells: Carefully inspect the solar cells for any damage. Handle them gently to avoid scratching the surface or damaging their delicate electrical contacts.
• Plan the Circuit: Before soldering, carefully plan the arrangement and connections of the solar cells. Solar cells are connected in either series or parallel arrangements, depending on the desired voltage and current output. Connecting cells in series increases voltage, while connecting them in parallel increases current. A simple series connection is recommended for beginners.

Assembly and Wiring of the Solar Panel

This section details the crucial steps involved in assembling and wiring the individual components into a functional solar panel. Accuracy and attention to detail are crucial to ensure the panel operates correctly.

Connecting the Solar Cells:

The precise method of connecting solar cells will depend on the design chosen. However, a typical approach involves the following steps:

1. Arrange the Cells: Arrange the solar cells on the substrate according to the chosen circuit configuration (series or parallel). Ensure sufficient spacing between the cells for easy wiring and access.
2. Secure the Cells: Apply a small amount of adhesive to the back of each solar cell and carefully fix them to the substrate. Ensure the cells are firmly attached and positioned accurately to avoid any shorts or open circuits.
3. Soldering the Wires: Once the adhesive has set, carefully solder the connecting wires to the positive (+) and negative (-) terminals of each solar cell. Use a low-wattage soldering iron and apply the solder precisely to create strong, reliable joints. Ensure the wires are securely attached to prevent accidental detachment.
4. Interconnect the Cells: Following the chosen circuit configuration (series or parallel), carefully interconnect the solar cells using the soldered wires. Ensure clean and robust connections to minimize voltage drop and power loss.
5. Insulation: Once the cells are interconnected, cover any exposed solder joints or wire ends with insulating tape or heat-shrink tubing to prevent shorts and improve safety.

Testing and Refinement:

After assembling the solar panel, it is essential to test its functionality and make any necessary refinements.

1. Connect the Load: Connect the output wires of the solar panel to the chosen load (e.g., an LED bulb or small DC motor).
2. Expose to Sunlight: Expose the panel to direct sunlight. The load should activate if the panel is correctly wired and the solar cells are functioning properly.
3. Troubleshoot: If the load does not activate, carefully check the wiring for any loose connections, shorts, or broken solder joints. Inspect each solar cell to ensure it is correctly connected and not damaged.
4. Adjustments: Based on the test results, make any necessary adjustments to the wiring or cell connections to optimize performance. This iterative process is crucial for understanding the principles of circuit design and troubleshooting.

Encapsulation and Finishing (Optional)

For enhanced durability and protection against environmental factors, consider encapsulating the solar panel. This step is optional but highly recommended for extending the lifespan of the project.

An appropriate encapsulation material, such as clear silicone sealant or resin, is applied over the solar cells to protect them from moisture, dust, and physical damage. Follow the manufacturer's instructions for application. Ensure the material is UV resistant to prevent degradation of the solar cells over time. Allow ample curing time before handling the panel.

Safety Precautions

Safety should be the paramount concern throughout this project. Always supervise children closely, particularly when working with soldering irons and electrical components. Adhere to the following precautions:

• Adult Supervision: Adult supervision is mandatory, especially for younger students. Soldering irons present a burn risk, and electrical components can pose hazards if mishandled.
• Eye Protection: Always wear appropriate eye protection when soldering or working with sharp objects.
• Proper Ventilation: Ensure adequate ventilation when soldering to avoid inhaling fumes.
• Fire Safety: Keep a fire extinguisher nearby when working with soldering irons and ensure all flammable materials are kept away from the work area.
• Disposal of Materials: Dispose of any waste materials responsibly according to local regulations.

This guide provides a foundational understanding of constructing a simple solar panel for educational purposes. Remember that while the final product might not match the efficiency of commercial panels, the educational value gained through hands-on experience with the principles of solar energy is invaluable.

Constructing a DIY Solar Panel: A Comprehensive Guide for Educational Purposes

This document provides a detailed, step-by-step guide for constructing a functional DIY solar panel suitable for a school science project. The project aims to provide a hands-on learning experience, illustrating the fundamental principles of photovoltaic energy conversion. While the resulting panel may not achieve the efficiency of commercially produced panels, it will demonstrably generate electricity, offering a valuable learning opportunity.

Materials and Equipment

Constructing a solar panel requires specific materials and tools. Careful selection and preparation are crucial for a successful outcome. The following list details the necessary components:

Solar Cells

The core component of any solar panel is the solar cell. These cells convert sunlight directly into electricity through the photovoltaic effect. For a school project, readily available silicon solar cells are recommended. These are typically inexpensive and relatively easy to handle. The number of cells used will determine the overall power output of the panel. Consider using 12-18 cells for a manageable project size. Ensure that the cells are of the same type and voltage rating for consistent performance.

Substrate

A sturdy and non-conductive substrate is needed to support the solar cells. A piece of plywood or a rigid plastic sheet (e.g., acrylic) approximately 1-2 inches larger than the array of solar cells in both dimensions serves this purpose well. Ensure it's clean and free from any debris before starting.

Soldering Iron and Solder

A low-wattage soldering iron (25-40W) with a fine tip is crucial for connecting the solar cells. Lead-free solder is recommended for environmental reasons. Appropriate safety precautions, including proper ventilation and the use of safety glasses, should be employed when using a soldering iron.

Connecting Wires

Thin, flexible wires (e.g., 22-24 AWG) are needed to connect the individual solar cells and to create the positive and negative terminals of the panel. Use wires with appropriate insulation to prevent short circuits. Consider using different colored wires (e.g., red for positive and black for negative) to maintain clarity and avoid confusion.

Solar Panel Encapsulant

An encapsulant is used to protect the solar cells from environmental factors such as moisture and UV radiation. A suitable encapsulant is a transparent, UV-resistant sealant, such as silicone sealant or epoxy resin. Apply the sealant carefully to ensure that no air bubbles are trapped between the cells and the sealant.

Mounting Hardware

Depending on the intended application, suitable mounting hardware will be required to secure the finished solar panel to a surface. This could include screws, bolts, brackets, or adhesive. The chosen method should ensure secure mounting while minimizing stress on the panel itself.

Multimeter

A multimeter is essential for testing the voltage and current output of the solar panel. This allows for verification of proper connections and assessment of the overall performance. Ensure that the multimeter is set to the appropriate voltage and current ranges before making any measurements.

Safety Glasses and Gloves

Safety glasses and gloves should be worn throughout the construction process to protect against potential hazards such as sharp edges, hot soldering irons, and potentially harmful chemicals (e.g., some sealants).

Construction Procedure

The following steps outline the assembly of the DIY solar panel:

Connecting the Solar Cells

The solar cells must be connected in series and/or parallel to achieve the desired voltage and current output. For a higher voltage, connect the cells in series (positive to negative). For a higher current, connect the cells in parallel (positive to positive, negative to negative). Carefully solder the wires to the contact points of the cells, ensuring secure and clean connections. Label the positive and negative terminals clearly.

Mounting the Solar Cells

Once the cells are wired, carefully arrange them on the prepared substrate. Ensure that the cells are evenly spaced and that there is sufficient space between them for the encapsulant to flow freely. Secure the cells temporarily using tape or clamps until the encapsulant is applied.

Applying the Encapsulant

Apply a generous layer of the chosen encapsulant, ensuring that it completely covers the solar cells and fills the spaces between them. Work carefully to avoid trapping air bubbles. Allow the encapsulant to cure completely according to the manufacturer's instructions. This may take several hours or even overnight.

Connecting to Terminals

After the encapsulant has cured, attach the positive and negative terminal wires to the corresponding wires of the solar cell array. These terminals will be the connection points for any circuit the panel powers. Use heat-shrink tubing or other suitable insulation to protect the solder joints.

Final Assembly and Testing

Once the connections are secure, carefully remove any temporary supports. Secure the panel to its mounting hardware. Finally, test the panel using the multimeter to measure the voltage and current output under direct sunlight. Record these measurements and compare them to the expected output based on the number and type of solar cells used.

Safety Precautions

Throughout this project, maintaining safety is paramount:

• Always wear safety glasses when handling sharp objects or using the soldering iron.
• Use appropriate ventilation when soldering to avoid inhaling fumes.
• Handle the solar cells carefully to avoid scratching or breaking them.
• Use caution when working with electrical components and ensure that all connections are properly insulated.
• Follow the manufacturer's instructions for all materials and tools used.
• Always supervise children when they are participating in this project.

Troubleshooting

If the solar panel doesn't produce the expected output, several troubleshooting steps can be taken:

• Check all connections: Ensure that all solder joints are secure and that there are no breaks or short circuits in the wiring.
• Verify cell orientation: Make sure all solar cells are oriented correctly to maximize sunlight absorption.
• Inspect for shading: Any shadow on the solar cells will significantly reduce output.
• Test individual cells: Use the multimeter to test the voltage of each individual cell to identify any faulty components.
• Check the encapsulant: Ensure that the encapsulant is properly cured and that there are no air bubbles that might be blocking light.

Conclusion

Constructing a DIY solar panel is an engaging and educational experience that provides valuable insights into renewable energy technologies. This comprehensive guide aims to equip students with the knowledge and skills necessary to successfully complete this project. Remember to emphasize safety precautions throughout the process and encourage careful attention to detail during each step. The resulting panel, although not commercially viable, provides a tangible demonstration of the principles behind solar energy conversion, enriching the learning experience significantly.

Harnessing the Sun: Building Your Own Simple Solar Cell

Hey there, science enthusiasts! Ever wondered how those amazing solar panels work? They're basically giant versions of something you can build yourself at home – a simple solar cell! It's a super cool science project that shows you the power of the sun in a really hands-on way. This isn't going to power your house (sorry!), but it's a fantastic way to understand the basic principles of solar energy. Get ready to be amazed!

What You'll Need: The Materials

Before we dive into the fun part (building!), let's gather the necessary supplies. Don't worry, nothing too fancy is needed. Most of it you might already have lying around the house. If not, a quick trip to a craft store or online retailer will do the trick.

Essential Ingredients:

• A copper plate: You can find these at craft stores, hardware stores, or even online. Aim for something fairly thin and relatively flat. Size doesn't hugely matter, but a piece about 3 inches by 3 inches is a good starting point.
• An aluminum plate: Similar to the copper, you can find aluminum sheets at most hardware stores. Again, a 3x3 inch piece is perfect for this project.
• Electrolyte solution: This is the secret sauce that makes the magic happen! We'll use a simple solution of lemon juice and water. The acidity of the lemon juice helps to conduct electricity. You can experiment with other solutions, but lemon juice is a safe and readily available option.
• Multimeter (optional, but highly recommended): This little device helps you measure the voltage your solar cell is producing. It's not strictly necessary, but it adds a really cool element to the project, allowing you to see the power you're generating firsthand. You can usually find multimeters at electronics stores.
• Two alligator clips: These will help you connect your multimeter (if you're using one) to the copper and aluminum plates.
• Sandpaper (fine grit): We'll use this to clean the surfaces of the copper and aluminum plates, ensuring good contact with the electrolyte solution.
• Small container or petri dish: This will hold our electrolyte solution and our plates.
• A sunny spot: Crucial for this project! You'll need direct sunlight to generate power.

Building Your Solar Cell: Step-by-Step

Okay, now for the exciting part! Let's build our solar cell. It's easier than you think. Remember safety first – always supervise children when conducting experiments.

Step 1: Prepare the Plates

First, use the sandpaper to gently clean both the copper and aluminum plates. This removes any oxide layers that could hinder the performance of our solar cell. Make sure both surfaces are nice and shiny. Don't press too hard, just enough to clean them.

Step 2: Mix the Electrolyte

In your small container, mix about equal parts lemon juice and water. You can adjust the ratio depending on how acidic you want it – more lemon juice means potentially more power, but it's best to start with a balanced mixture. Stir gently to combine.

Step 3: Assemble the Cell

Carefully place both cleaned plates into your container, making sure they don't touch each other. Leave a small gap between them, submerged in the lemon juice solution. The plates should be partially submerged, but not completely. You want just enough to ensure there is good electrical contact within the liquid.

Step 4: Measure the Voltage (Optional)

If you have a multimeter, this is where it comes into play! Set your multimeter to measure voltage (usually indicated by a "V" symbol). Attach one alligator clip to one plate (e.g., the copper plate) and the other clip to the other plate (aluminum plate). Expose the setup to direct sunlight. You should see a small voltage reading on your multimeter. This is the electricity being generated by your solar cell!

Step 5: Observe and Experiment

Now that your solar cell is assembled and working (hopefully!), let's observe. Notice how the voltage changes depending on the intensity of the sunlight. Try covering the cell with your hand – the voltage will likely drop. Experiment with different concentrations of lemon juice in your electrolyte solution. See how the voltage is affected. This is where the real learning happens!

Understanding the Science Behind it

So, what's actually going on here? The magic is in the photovoltaic effect. When sunlight hits the copper and aluminum plates, it excites electrons in the metals. The lemon juice solution acts as an electrolyte, allowing these excited electrons to flow from one plate to the other, creating an electrical current. It's a simple demonstration of how solar panels generate electricity – just on a much smaller scale!

It's important to remember this is a very basic solar cell. Commercial solar panels use much more sophisticated materials and techniques to generate significantly more power. However, this project is a fantastic way to understand the fundamental principles involved. And it's pretty cool to have built your very own electricity-generating device!

Troubleshooting and Tips

If your solar cell isn't working as expected, don't despair! Here are some common problems and solutions:

• No voltage reading: Make sure the plates are clean and shiny, that they're adequately submerged in the electrolyte, and that they aren't touching each other. Check your multimeter connections too.
• Low voltage reading: Ensure you have strong, direct sunlight. Experiment with different concentrations of lemon juice.
• Inconsistent readings: Clouds or shadows can dramatically affect your voltage readings. Try to keep the setup in consistent sunlight.

Don't be afraid to experiment! This is a great opportunity to explore different materials and techniques. Try using different metals or different electrolytes. See what you discover!

Frequently Asked Questions (FAQs)

Here are some answers to common questions about this simple solar cell project:

Q: Can I use other fruits instead of lemons?

A: Yes, you can experiment with other acidic fruits like oranges or limes. The acidity is key for conductivity. You might find slightly different results depending on the fruit's acidity.

Q: How long will my solar cell last?

A: This simple solar cell isn't built for longevity. The lemon juice solution will likely degrade over time. Consider this a demonstration of the principles, not a long-term power source.

Q: Can I power something with this solar cell?

A: Probably not anything significant. The voltage produced is very low. You might be able to power a very small LED, but don't expect to charge your phone!

Q: Is this project safe for children?

A: Adult supervision is always recommended, especially when working with sharp objects like sandpaper and potentially messy liquids. The materials themselves are generally safe, but caution is always prudent.

Q: What are the limitations of this simple solar cell?

A: This is a highly simplified model of a solar cell. It uses readily available materials and has low efficiency compared to commercially produced solar panels. It's intended as an educational tool to demonstrate the underlying principles.

Have fun building your solar cell and exploring the fascinating world of solar energy! Remember to share your results and any modifications you make. Happy experimenting!

Constructing a Rudimentary Solar Cell Utilizing Paper and Aluminum Foil: A Detailed Exploration

The following document provides a comprehensive guide to the construction of a rudimentary solar cell employing readily available materials such as paper and aluminum foil. While the efficiency of such a device will be significantly lower than commercially produced solar panels, this project serves as a valuable educational tool to demonstrate the fundamental principles of photovoltaic energy conversion. Understanding the limitations and potential of this simplified model provides a foundational understanding for appreciating the complexities of advanced solar cell technologies.

Materials and Equipment

The success of this project hinges upon the careful selection and preparation of materials. Impurities and inconsistencies can dramatically impact the performance of the resulting solar cell. Therefore, meticulous attention to detail is paramount.

Essential Components:

• Aluminum Foil: A substantial quantity of high-quality aluminum foil is required. Avoid foil with any noticeable surface imperfections or discoloration. The purity of the aluminum directly correlates with the cell's efficiency.
• Paper: The paper serves as a dielectric layer, separating the two conductive layers. Ideally, a thick, absorbent, and relatively inert paper such as card stock or watercolor paper should be used. Avoid using glossy or coated papers, as these can impede the charge transfer process.
• Electrolyte Solution: This crucial component facilitates the movement of ions, enabling the photovoltaic effect. A simple electrolyte solution can be prepared using table salt (sodium chloride) dissolved in water. The concentration of the salt solution will influence the cell's performance, requiring careful experimentation to determine optimal levels. Other electrolytes, such as those based on fruit juices or vinegar, can also be investigated, though their effectiveness may vary significantly.
• Conductive Ink or Paste (Optional): While not strictly essential, conductive ink or paste can enhance the performance of the rudimentary cell by improving the electrical contact between the aluminum foil and external circuitry. These specialized materials can improve conductivity and reduce contact resistance.
• Multimeter: A multimeter is essential for measuring the voltage and current produced by the homemade solar cell. This will allow for quantitative assessment of the device's performance.
• Light Source: A strong and consistent light source is necessary to illuminate the solar cell. Ideally, a halogen lamp or a solar simulator would provide the most reliable and controlled illumination. However, direct sunlight can also be utilized, though its intensity can fluctuate throughout the day.
• Connecting Wires: These are needed to connect the aluminum foil electrodes to the multimeter for voltage and current measurements. Ensure that the wires are properly insulated to prevent short circuits.
• Scissors or Utility Knife: Precise cutting of the aluminum foil and paper is crucial for accurate alignment and optimal performance.
• Ruler and Pencil: Accurate measurements are essential to ensure consistent electrode dimensions and spacing, which in turn influence performance.
• Protective Gloves: It is always advisable to wear protective gloves when working with electrolyte solutions to avoid skin irritation or contamination of the materials.

Construction Process: A Step-by-Step Guide

The construction process requires meticulous attention to detail to achieve optimal performance. Even minor deviations from the specified steps can lead to a significant reduction in the efficiency of the solar cell.

Step 1: Preparation of the Electrodes:

Cut two pieces of aluminum foil to the desired dimensions. The size of the electrodes will affect the overall power output of the cell; larger electrodes generally result in higher current, but also increase the internal resistance. Ensure that the edges are clean and free from any irregularities that could interfere with the electrical contact.

Step 2: Preparation of the Dielectric Layer:

Cut a piece of paper slightly larger than the aluminum foil electrodes. This will act as a separator. The thickness of the paper influences the distance between the electrodes, which affects the internal resistance of the cell. Thicker paper leads to higher resistance, and thinner paper to lower resistance.

Step 3: Assembly of the Solar Cell:

Carefully position one piece of aluminum foil onto the paper, ensuring complete coverage. Apply the electrolyte solution evenly onto the surface of the foil. Avoid applying excessive amounts as this may lead to leakage. Subsequently, position the second aluminum foil piece on top, ensuring no direct contact between the two foil sheets except at the edges where electrical connections will be made. This arrangement forms a rudimentary capacitor-like structure.

Step 4: Electrical Connections:

Using the connecting wires, attach one wire to each aluminum foil electrode. Ensure a secure connection to minimize resistance. If using conductive ink or paste, apply it to the edges of the foil to enhance the electrical contact with the wires.

Step 5: Testing and Evaluation:

Exposing the assembled solar cell to a light source, measure the voltage and current generated using the multimeter. Record these values. Vary the light intensity and observe the change in voltage and current. Experiment with different electrolyte solutions and paper thicknesses to investigate their impact on the device's performance. Analyze the results to determine the optimal conditions for maximum power output.

Limitations and Further Enhancements

It's crucial to acknowledge the substantial limitations of this rudimentary solar cell. Its efficiency will be extremely low compared to commercially available silicon-based solar panels. This is primarily due to several factors:

• Low Efficiency of the Electrolyte: The simple salt solution electrolyte is far less efficient than the advanced electrolytes used in commercial cells. Its inherent limitations significantly reduce the charge separation and current generation capacity.
• Imperfect Charge Separation: The simplistic design leads to poor charge separation compared to the sophisticated layered structures of commercial solar cells.
• High Internal Resistance: The relatively high resistance within the cell reduces the amount of current that can flow, limiting the overall power output.
• Light Absorption Limitations: The aluminum foil reflects a significant portion of the incident light, reducing the amount of light actually absorbed and converted to electricity.

Despite its limitations, this project provides a valuable learning experience. Potential enhancements to improve performance, though requiring more sophisticated materials and techniques, could include:

• Utilizing Dye-Sensitized Solar Cells (DSSCs): Employing a photosensitive dye within the electrolyte can improve light absorption and charge separation.
• Employing more sophisticated electrolytes: Exploring alternative electrolytes with higher ionic conductivity can enhance the performance of the cell.
• Introducing a transparent conductive oxide layer: Incorporating a transparent conductive oxide layer (like ITO) can improve light transmission and electron collection.
• Optimizing electrode geometry: Investigating different electrode designs and arrangements can minimize internal resistance and enhance light absorption.

In conclusion, while this homemade solar cell using paper and aluminum foil possesses significant limitations in terms of efficiency, it serves as a valuable educational tool for understanding the fundamental principles behind photovoltaic energy conversion. By understanding these limitations, and exploring potential enhancements, a more profound appreciation for the complexities and potential of advanced solar cell technologies can be achieved.

Constructing a Low-Power Solar Panel using Cardboard and Readily Available Materials: A Practical Guide

This document details the construction of a rudimentary solar panel using readily available, inexpensive materials such as cardboard, aluminum foil, and readily available conductive materials. It is important to preface this guide by acknowledging that the resulting solar panel will generate a very low voltage and current, unsuitable for powering high-energy devices. This project is primarily intended for educational purposes, demonstrating the fundamental principles of photovoltaic energy conversion. The power output should not be expected to exceed that required for simple low-power applications, such as powering a small LED.

Project Overview and Safety Precautions

This project aims to illustrate the basic operation of a solar cell by constructing a simple device from readily available materials. While the materials are generally safe, certain precautions should be observed throughout the construction process.

Safety Considerations:

• Sharp Objects: Use caution when handling scissors, knives, or other sharp instruments used for cutting the cardboard and foil.
• Conductive Materials: Handle conductive materials such as copper tape or aluminum foil with care to avoid short circuits. Avoid touching exposed conductive surfaces while the panel is connected to a load.
• Eye Protection: Consider wearing safety glasses during the cutting and assembly process to protect against flying debris.
• Electrolyte Handling (Optional): If employing an electrolyte solution (see advanced techniques), follow all relevant safety guidelines and wear appropriate personal protective equipment (PPE).

Materials and Tools Required

The following materials and tools are essential for constructing this basic solar panel:

Materials:

• Cardboard: A piece of sturdy cardboard, approximately 15cm x 15cm. Corrugated cardboard is acceptable; however, smoother surfaces may improve efficiency.
• Aluminum Foil: A sheet of aluminum foil, slightly larger than the cardboard. The quality of the foil impacts performance; thicker foil generally provides better results.
• Conductive Tape or Paint: Copper tape is preferable due to its excellent conductivity, but conductive paint can be used as an alternative. Ensure it is specifically designed for electrical applications.
• Electrolyte Solution (Optional): For enhanced performance (explained in advanced techniques), a suitable electrolyte solution, such as a paste of graphite powder and water, or a dilute solution of lemon juice, could be explored. Consult relevant resources for safer, more efficient solutions.
• LED or other Low-Power Load (Optional): A small LED or other low-power device can be used to test the output of the solar panel. A multimeter is recommended for voltage and current measurements.

Tools:

• Scissors or Utility Knife: For cutting the cardboard and foil.
• Ruler or Straight Edge: For accurate measurements and cutting.
• Pencil: For marking the cardboard.
• Tweezers (Optional): Useful for handling small components and applying conductive tape accurately.
• Multimeter (Optional): For measuring the voltage and current generated by the solar panel.

Construction Process: Step-by-Step Guide

The following steps describe the construction of a simple solar panel using the specified materials. This process focuses on a basic design; variations are possible based on available resources and desired complexity.

Step 1: Preparing the Cardboard Base

Cut the cardboard to the desired size (approximately 15cm x 15cm). Ensure the edges are clean and straight. This will serve as the substrate for the entire panel.

Step 2: Applying the Aluminum Foil

Carefully place the aluminum foil over the cardboard, ensuring complete coverage. Smooth out any wrinkles or air bubbles to ensure proper contact. Use scissors to trim any excess foil, leaving a small overlap around the edges of the cardboard.

Step 3: Creating the Conductive Paths

This is a crucial step. Use the conductive tape or paint to create two separate conductive paths on the aluminum foil. These paths will be the positive and negative terminals of the solar panel. Leave a significant gap between the two strips to avoid short circuits. Ensure good adhesion of the conductive material to the aluminum foil for optimal performance.

Step 4: Connecting to a Load (Optional)

If an LED or other low-power device is available, connect the positive and negative leads to the respective conductive paths. Observe the LED; a dimly lit LED indicates successful power generation, albeit with limited output. A multimeter can be used to measure the voltage and current produced. Expect very low readings, typically in millivolts and microamps.

Advanced Techniques and Optimizations

While the above process outlines a basic solar panel, certain modifications can enhance performance, though potentially increasing complexity.

Utilizing an Electrolyte Solution

The introduction of an electrolyte solution between the aluminum foil and the cardboard can increase the panel's efficiency, but requires careful consideration of safety and material compatibility. A paste of graphite powder and water, or a diluted citrus juice, could be explored. Thorough research is necessary to select an appropriate and safe electrolyte. The electrolyte should be applied evenly between the aluminum foil and the cardboard.

Utilizing Multiple Cells

The output of the single-cell panel is extremely limited. By creating multiple smaller cells and connecting them in series or parallel, the voltage or current output can be increased. This requires careful planning of the conductive pathways and connections between cells.

Surface Treatment of Aluminum Foil

Specific chemical treatments or surface modifications to the aluminum foil may enhance its light-absorbing properties and improve its performance as a photovoltaic material. However, these methods may require specialized equipment and chemicals.

Conclusion

This guide presents a basic approach to constructing a low-power solar panel using readily available materials. The generated power is extremely limited, emphasizing the simplified nature of the design. While the project may not produce commercially viable electricity, it serves as a valuable educational tool, demonstrating the fundamental principles behind photovoltaic energy conversion. Further experimentation with materials and techniques can improve performance, but always prioritize safety and responsible handling of materials.

Harnessing the Sun: Making a Simple Solar Cell at Home

Ever wanted to build your own solar cell? It might sound like something from a science fiction movie, but trust me, it's way more achievable than you think! While you won't be powering your house with this homemade version, it's a fantastic project to understand the basic principles of solar energy. This guide will walk you through a simple method using readily available materials, explaining the science along the way. Get ready to unleash your inner scientist!

What You'll Need:

Before we get started, let's gather our supplies. The beauty of this project is that most of these items can be found around your house or at a local craft store. Don't worry if you don't have *exactly* the same things – a bit of improvisation is part of the fun!

• A clear glass or plastic container: Think a small, shallow dish or even a clean jar lid. The flatter the better.
• Electrolyte solution: We'll be making this ourselves, it's simple and safe, we promise! (recipe below)
• Two different metal electrodes: This is where things get interesting! You'll need two metals with different reactivity. Copper (from copper wire, pennies – although avoid coated ones!) and zinc (from galvanized steel, which is readily available in hardware stores) are perfect.
• Connecting wires: These will link your electrodes to the voltmeter. Aluminum foil can work in a pinch!
• Voltmeter: This is crucial for measuring the voltage produced by your solar cell. You can usually find these fairly inexpensively online or at electronics stores. Don't worry if your voltmeter reads in millivolts (mV) – this is perfectly normal for such a small-scale solar cell.
• Optional: Sunlight! While you might get *a tiny* amount of current in shadow, the sun's energy is the power behind the whole process.

Making the Electrolyte Solution:

Our electrolyte is the key to getting current to flow. We'll use a simple lemon juice solution, but other acidic solutions can also work. Avoid using anything too corrosive or dangerous, though!

Recipe for Homemade Electrolyte:

• 1/2 cup lemon juice: Freshly squeezed is best! It will have a higher concentration of citric acid.
• 1/4 cup water: Tap water is fine.

Gently mix the lemon juice and water in your container. This liquid will conduct electricity, facilitating the movement of electrons from one metal to the other, creating the current.

Assembling Your Solar Cell:

Now for the fun part! Here's how to put everything together:

1. Prepare your electrodes: If using copper wire or pennies, gently clean them with sandpaper or steel wool to remove any oxide layer that might hinder conductivity. For galvanized steel, clean it similarly.
2. Submerge the electrodes: Carefully place your copper and zinc electrodes into the electrolyte solution, ensuring they don't touch each other! Leave a small gap between them.
3. Connect the wires: Attach one end of the connecting wire to each electrode. Make sure the connection is secure. You might use tape or alligator clips to secure the wires, depending on your materials.
4. Connect to the voltmeter: Attach the other ends of the wires to the positive (+) and negative (-) terminals of your voltmeter. Note which electrode goes to which terminal – getting the polarity reversed will simply lead to a negative voltage reading.
5. Expose to sunlight: Place your solar cell in direct sunlight. You should see a reading on your voltmeter! The higher the sun's intensity, the higher the voltage reading will be. Remember that we are talking about a *very* low-voltage solar cell, so be patient and let the readings stabilise.

Understanding the Science:

What's actually happening here? It's all about the photovoltaic effect! The sunlight hitting the electrodes excites electrons in the metals. Because the copper and zinc have different electron affinities (how strongly they attract electrons), electrons flow from the zinc (which loses them more readily) to the copper. This flow of electrons creates an electric current, which the voltmeter measures as voltage.

The lemon juice acts as the electrolyte, facilitating the flow of these electrons. It's not a perfect conductor, leading to some energy loss, but it is surprisingly effective for such a simple solar cell.

This process is fundamentally similar to what happens in sophisticated silicon solar cells, but on a much smaller and simpler scale. Think of our homemade version as a fun introduction to the underlying principles!

Improving Your Solar Cell:

While this setup provides a basic understanding of solar energy, you can try a few things to improve performance:

• Experiment with different electrolytes: Try other acidic solutions like vinegar (acetic acid) or even a solution of baking soda and water (though this will provide a smaller voltage and will be somewhat less efficient).
• Optimize electrode surface area: Larger electrodes will generally lead to a higher current. Using multiple smaller electrodes in a matrix form could also be worth exploring for an enhanced effect.
• Use higher-quality electrodes: Clean, unoxidized metals will provide better conductivity.
• Control for light intensity: Conduct several trials in consistent light conditions to obtain reliable results.

Remember, this is an experimental project! Don't be afraid to try different combinations and see what happens. The learning comes as much from what doesn't work as from what does.

Commonly Asked Questions:

• Q: How much power can I generate with this? A: This simple solar cell will generate only a very small amount of power, measured in millivolts. It's not designed to power anything more than a small LED, if that. It's all about demonstrating the concept.
• Q: Can I use other metals? A: Yes, but some may be less effective than others. The key is to use two metals with different reactivity, leading to a measurable voltage difference.
• Q: Why does the voltage fluctuate? A: The voltage will fluctuate depending on sunlight intensity, the condition of your electrodes, and the temperature. A partially clouded sky can drastically change the result!
• Q: Is this safe? A: Yes, this project is safe to undertake, however, handle the metal electrodes and connecting wires with care. Ensure the electrolyte solution doesn't get into your eyes and wash your hands after handling the materials.
• Q: My voltmeter shows nothing! What went wrong? A: Double-check your connections, ensure your electrodes aren't touching, and that your electrolyte solution is properly made. Ensure your materials are properly cleaned to enhance conductivity.

So there you have it! A fun and educational journey into the world of solar energy. Get crafting, experiment, and enjoy the process of making your own little sun-powered device!

From Scratch: A Comprehensive Guide to Constructing a Simple Solar Cell

The burgeoning field of renewable energy necessitates a deeper understanding of its foundational technologies. Solar cells, the heart of photovoltaic systems, offer a compelling avenue for harnessing the sun's energy. While commercially produced solar cells utilize sophisticated manufacturing processes, a basic understanding of their operation can be gained through the construction of a simple, albeit less efficient, solar cell from readily available materials. This guide provides a detailed, step-by-step approach to creating such a device, elucidating the underlying principles and highlighting crucial considerations throughout the process.

Understanding the Fundamentals of Solar Cell Operation

Before embarking on the construction process, it is imperative to grasp the fundamental principles governing the operation of a solar cell. At its core, a solar cell is a semiconductor device that converts light energy directly into electrical energy via the photovoltaic effect. This effect involves the absorption of photons (light particles) by a semiconductor material, leading to the excitation of electrons and the generation of an electric current.

The Photovoltaic Effect: A Closer Look

The photovoltaic effect hinges on the unique electronic properties of semiconductors. Unlike conductors, which readily allow electrons to flow freely, and insulators, which strongly resist electron flow, semiconductors exhibit an intermediate behavior. Their conductivity can be precisely controlled by introducing impurities, a process known as doping. In a typical solar cell, two types of doped silicon are used: n-type (with excess electrons) and p-type (with electron "holes," or the absence of electrons).

When these two types of silicon are brought into contact, a p-n junction is formed. At this junction, electrons from the n-type silicon diffuse into the p-type silicon, filling some of the holes. This diffusion process creates an electric field across the junction, forming a depletion region where few charge carriers exist. When photons strike the solar cell, they excite electrons in the semiconductor material, generating electron-hole pairs. The electric field in the depletion region then separates these charge carriers, driving electrons towards the n-type silicon and holes towards the p-type silicon. This separation of charges creates a voltage across the cell, and connecting an external circuit allows the flow of current, thus generating electricity.

Material Selection and Considerations

While silicon is the most common material used in commercial solar cells due to its high efficiency and stability, creating a functional solar cell from silicon requires specialized equipment and processes. For a simple demonstration, alternative materials are employed. This guide utilizes readily available materials that exhibit a rudimentary photovoltaic effect, allowing for a basic understanding of the underlying principles without requiring extensive laboratory facilities.

Constructing a Simple Solar Cell: A Step-by-Step Guide

This section outlines the materials and procedure for creating a rudimentary solar cell using readily accessible components. While the efficiency will be considerably lower than that of commercial silicon-based solar cells, the process demonstrates the fundamental principles of photovoltaic energy conversion.

Materials Required

• Two copper plates: These will serve as electrodes.
• Electrolyte solution: A solution of iodine (I₂) dissolved in a potassium iodide (KI) solution. Caution: Handle iodine with care, as it can stain skin and is a potential irritant. Always wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• A clear adhesive: This will be used to securely attach the copper plates to a substrate.
• A light source: Sunlight is preferred, but a strong incandescent light can also be used.
• A multimeter: To measure the voltage and current generated by the solar cell.
• Connecting wires: To connect the multimeter to the copper plates.

Procedure

1. Prepare the electrolyte solution: Carefully dissolve a small amount of iodine in a potassium iodide solution (approximately 0.1M KI). The exact concentration is less critical for this demonstration, but ensure the iodine is fully dissolved.
2. Attach the copper plates: Using a clear adhesive, attach two copper plates to a clear substrate, leaving a small gap between them. Ensure the plates are parallel to each other.
3. Apply the electrolyte solution: Carefully apply a few drops of the electrolyte solution to the gap between the copper plates. The solution should bridge the gap, forming an ionic conductive path between the two copper electrodes.
4. Expose to light: Place the constructed solar cell under a strong light source, preferably direct sunlight.
5. Measure the voltage and current: Connect the multimeter to the copper plates and measure the voltage and current generated. You should observe a small voltage and current output, indicating the generation of electricity via the photovoltaic effect.

Interpreting the Results and Improving Performance

The voltage and current generated by this simple solar cell will be relatively low, typically in the millivolt and microampere ranges. This is expected given the significantly lower efficiency compared to commercially produced silicon-based solar cells. Several factors contribute to this lower efficiency:

• The nature of the materials: Copper and the iodine-based electrolyte are not optimized for high efficiency photovoltaic conversion.
• Lack of a p-n junction: This design does not employ a precisely engineered p-n junction, a crucial component for efficient charge separation.
• Imperfect contact between electrodes and electrolyte: Any air bubbles or uneven distribution of the electrolyte can reduce the effectiveness of charge transfer.

While improving the efficiency of this rudimentary solar cell beyond a certain point is challenging without access to more specialized materials and equipment, adjustments can be made to enhance its performance:

• Optimize the electrolyte concentration: Experimenting with different concentrations of the iodine-potassium iodide solution might yield slightly better results.
• Improve electrode contact: Ensure complete and uniform contact between the copper plates and the electrolyte, eliminating any air bubbles.
• Use a more intense light source: A stronger light source will increase the number of photons striking the cell, leading to higher energy conversion.

Conclusion

This guide provides a practical approach to constructing a simple solar cell using readily available materials. While the efficiency is significantly lower than that of commercial solar cells, this exercise effectively demonstrates the fundamental principles of the photovoltaic effect and energy conversion. It serves as a valuable introduction to the field of renewable energy and encourages further exploration into the complexities and advancements in solar cell technology. The limitations encountered in this simple experiment highlight the sophisticated engineering and material science involved in the development of high-efficiency solar cells, emphasizing the importance of continued research and innovation in this vital field.
